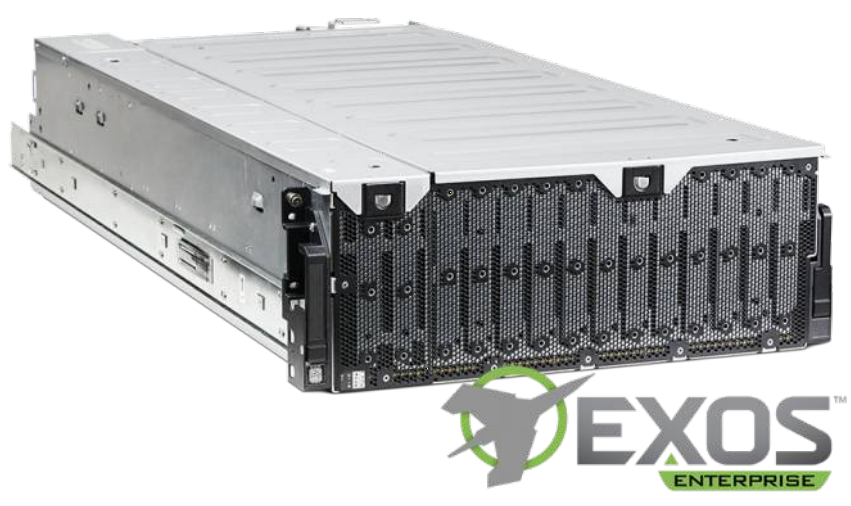

Seagate - Exos E 4U106 JBOD Building Blocks System

Seagate - Exos E 4U106 JBOD Building Blocks System
  • Scale your data center with this very high density storage platform
  • Minimize a data center’s footprint and power consumption while maximizing storage space
  • Eliminate efficiency-draining acoustic interference with the proprietary noise attenuator
  • Maintain your data center easily with toolless drive carriers that save hours of time
  • Ensure data is constantly available with hot-swappable controllers, PSUs, system fan modules, drives, and expander cards

More

Seagate® Exos™ E 4U106 is the datasphere’s largest building block delivering industry-first capacity and density without sacrificing data access speed.

Key Advantages

Build Exabyte-Scale Data Centers Fast. Increase the amount of data that fits in a 4U rack by leveraging up to 106 of our high-capacity hard drives in a single enclosure that holds up to an unprecedented 1.7PB 1 of business intelligence. With an overall maximum bandwidth of 36GB/s, you can access mission-critical and archival data with lightning speed.

Deliver Versatile Architecture Built to Grow. This flexible enclosure includes support and capabilities to manage cables, universal ports, self-configuration controls, and standardized zoning. As the largest building block of our modular systems— which make all critical components interchangeable regardless of size or budget— this platform sets the new standard for data center solutions with extremely high density and capacity, all with unparalleled reliability and performance.

Easy to Set Up, Maintain, and Expand. This system’s user-focused design reduces support calls and minimizes system downtime. Its modularity makes it first-in-class for reliability, easy setup, maintenance, and expansion via hot-swappable expanders and dual data paths, as well as redundant I/O modules, fans, and power supplies. Additionally, this system features toolless drive carriers that allow an administrator to snap drives into the 106 bays in seconds.

Reduce Cost and Resources With Energy-Efficient Features. This enclosure is suited for high data retention requirements that are expected to grow. Innovative drive placement maximizes airflow and minimizes power consumption, and unique performance, efficiency, and scalability features provide an unprecedented low TCO.

Build In Security at the Foundation of the Data Life Cycle. Protect your most valuable business assets with Seagate Secure™ cybersecurity features.

1 When using Exos 16TB drives

More Product Information

Seagate - Exos E 2U12 JBOD Building Blocks System
  • Save space with up to 12 drives in a 2U rackmount enclosure
  • Simplify overall product portfolio with this versatile storage building block
  • Safeguard data with intelligent fault diagnosis, resolution capabilities, persistent error logging, and monitoring
  • Deliver data fast using Seagate hard drives, SSDs, or a combination of both
  • Ensure data is available with N+1 PCMs, I/O modules, and dual data paths to all drives
  • Maximum of 28.8GB/s in a dual controller configuration
Seagate - Exos E 2U24 JBOD Building Blocks System
  • Save space with up to 24 drives in a 2U rackmount enclosure
  • Simplify overall product portfolio with this unique storage building block
  • Safeguard data with intelligent fault diagnosis, resolution capabilities, persistent error logging, and monitoring
  • Deliver data fast using Seagate hard drives, SSDs, or a combination of both
  • Ensure data is available with N+1 PCMs, I/O modules, and dual data paths to all drives
  • Maximum of 28.8GB/s in a dual controller configuration

Seagate - Exos E 5U84 JBOD Building Blocks System
  • Deliver peace of mind with features to protect data, including dual power supplies, fan modules, and I/O modules, as well as dual data paths to all drives
  • Reduce power consumption with 80 PLUS Platinum certified power supplies and adaptive cooling technology
  • Easily manage cables, universal ports, self-configuration controls, and standardized zoning
  • Seamlessly expand to 336 drives as business grows
  • Efficiently manage your data center with a 5U rackmount enclosure and unique drawer design that provides easy access to drives
  • Maximum of 28.8GB/s in a dual controller configuration

Seagate - Exos AP 5U84 Compute & Storage System
  • Maximize your investment with this low-TCO integrated compute and high-density storage system
  • Leverage industry-leading CPU technology with dual Intel Xeon E5 v4 Family CPUs on each controller
  • Efficiently manage your data center with a 5U rackmount enclosure and unique drawer design that provides easy access to drives
  • Future-proof your data center with support for current and nextgeneration HDDs and SSDs
  • Reduce power consumption with 80 PLUS Platinum certified power supplies and adaptive cooling technology

Seagate - Exos AP 4U100 Compute & Storage System
  • Maximize your investment with this low-TCO compute and high-density integrated storage system
  • Retain valuable space with a 4U rack height that offers 96 × 3.5-in drive and 4 × 2.5-in drive capacity
  • Leverage dual Intel Xeon Scalable CPUs on each controller
  • Deliver maximum data throughput with two 12G SAS redundant application controllers
  • Future-proof your data center with support for current and nextgeneration HDDs and SSDs
  • Enable full drive performance in all slots with built-in technology to minimize drive performance degradation

Seagate - Exos X 2U24 RAID & Data Protection System
  • Expand a data center seamlessly with flexible hard drive and hybrid flash configuration options
  • Efficiently manage hot and cold data with real-time data tiering feature option
  • Deliver unfettered data access with dual redundant controllers capable of achieving up to 7GB/s sequential read, 5.5GB/s sequential write performance
  • Rebuild drives faster than ever and reduce downtime with Seagate ADAPT data protection technology
  • Opt for replication and snapshot features to meet critical enterprise requirements

Seagate - Exos X 5U84 RAID & Data Protection System
  • Expand a data center seamlessly with single enclosures that host up to 1.3PB 1 of data
  • Efficiently manage hot and cold data with real-time data tiering option
  • Deliver unfettered data access with dual redundant controllers capable of achieving up to 7GB/s sequential read, 5.5GB/s sequential write performance
  • Rebuild drives faster than ever and reduce downtime with Seagate ADAPT data protection technology
  • Opt for replication and snapshot features to meet critical enterprise requirements

Seagate - Exos 5E8 Hard Drive
Made for data archiving, Exos 5E8 enables highly-affordable cloud storage with data center reliability.*
  • Up to 8TB capacity, SATA interface
  • Engineered for 24×7 operation and 180TB/yr workload
  • Perfect fit for workloads focused on sequential writes
*Formerly Archive HDD

Seagate - Exos 7E2 Hard Drive
1TB and 2TB, 3.5-inch Exos 7E2 series enterprise drives are industry-leading hard drives with ninth-generation nearline technology.*
  • SATA 6Gb/s interface (512 native) for easy integration into 512 native legacy systems
  • Engineered for reliable 24×7 unstructured data workloads of 550TB/yr
  • Industry-leading rotational vibration for consistent performance in multi-drive systems
  • On-demand PowerChoice™ feature enables lower power options
* Formerly Enterprise Capacity 3.5 HDD, version 5.1
