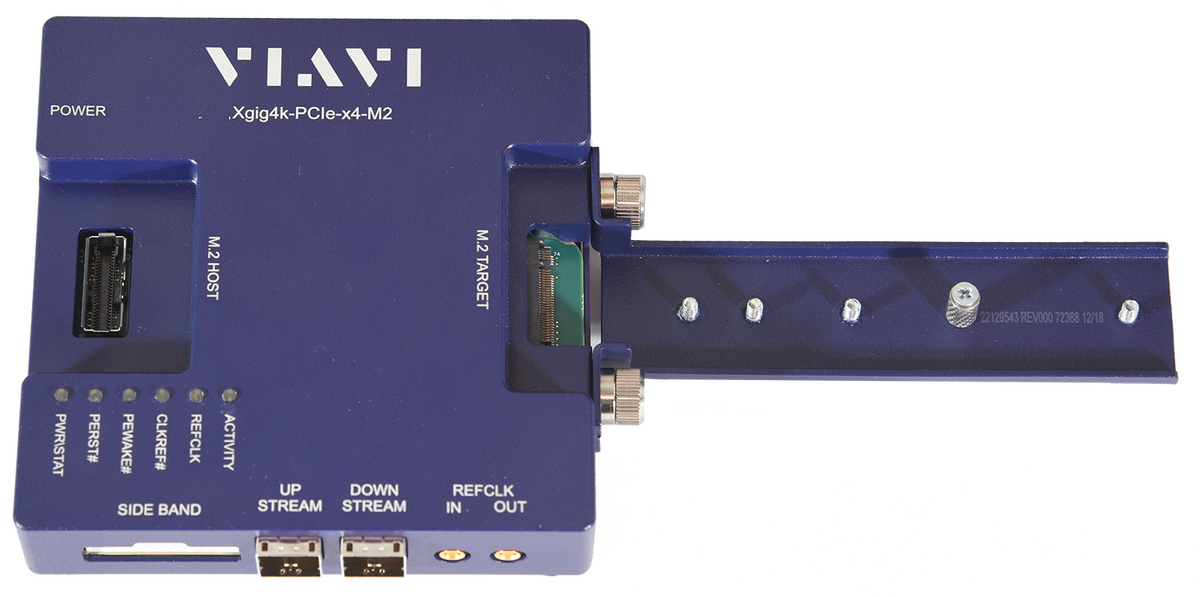

VIAVI - Xgig M.2, 4-lane Interposer for PCI Express 4.0
-
Operates up to 16GTps, PCIe 4.0 data rates
-
Downward compatible with PCIe Gen-1, Gen-2 and Gen-3 data rates of 2.5, 5.0 and 8.0GTps
-
Supports PCIe links of up to 4-lanes
-
M.2 PCIe SSD DUT plugs directly into the Interposer
-
Supports M.2 card types 2230, 2242, 2260, 2280 and 22110
-
Custom cable with PCB connects to host system DUT
-
Data path uses high-speed linear redrivers to insure good signal capture with little or no tuning
-
Supplied with two high-quality SFF-8764 equivalent custom cables for Analyzer attachment
-
Supports Analyzer side-band signal capture and triggering
-
Interposer power is independent of host system
-
A 120/220 AC in, 12V/3A DC output converter is included
-
Works together with the VIAVI Xgig 4K4 and 4K16 PCIe 4.0 Analyzer/Jammer chassis
-
Supported by VIAVI Xgig Analyzer tools for trace capture with filter, trigger and more
-
Integrates seamlessly with Xgig Expert™ for problem and performance analysis
More Product Information
-
Operates up to 32GT/s, PCIe 5.0 data rates
-
Downward compatible with PCIe Gen-1, Gen-2, Gen-3 and Gen-4 data rates of 2.5, 5.0, 8.0 and 16.0GT/s
-
Supports PCIe links of up to 4-lanes
-
M.2 PCIe SSD DUT plugs directly into the Interposer
-
Supports M.2 card types 2230, 2242, 2260, 2280 and 22110
-
Custom cable with PCB connects to host system DUT
-
Data path uses high-speed linear redrivers to ensure good signal capture with little or no tuning
-
Supplied with two high-quality SFF-8764 equivalent custom cables for Analyzer attachment
-
Supports Analyzer side-band signal capture and triggering
-
Interposer power is independent of host system
-
A 120/220 AC in, 12V/3A DC output converter is included
-
Integrates seamlessly with the Xgig software tools suite, including Expert™, for problem and performance analysis
-
Supports link widths up to 16-lanes
-
Operates up to 32GTps, PCIe 5.0 data rates
-
Downward compatible with PCIe 1.0, 2.0, 3.0 and 4.0, and data rates of 2.5, 5.0, 8.0 and 16GTps
-
A top edge 16-lane CEM slot connector accepts all endpoint DUT adapter cards
-
Bottom edge 16-lane PCB finger connector installs into host test system’s 16-lane PCIe slot
-
Data path uses high-speed linear redrivers to ensure good signal capture with minimal tuning effort
-
Supports Analyzer side-band signal triggering and capture via custom cable
-
Interposer power is independent of host system. A 120/220 AC in, 12V/3A DC out converter is included
-
Custom, exchangeable brackets enable secure chassis and endpoint card installations
-
LEDs give quick indication of power and operation
-
Format: Design is based on the 16-lane Card Electro-Mechanical (CEM) specification
-
Size: 230mm deep x 185mm tall x 15mm thick
-
Operates up to 16GTps, PCIe 4.0 data rates
-
Downward compatible with PCIe 1.0, 2.0 and 3.0 data rates of 2.5, 5.0 and 8.0GTps
-
Supports links of up to and including 4-lanes
-
NVMe SSD DUT (not supplied) plugs directly into the Interposer
-
Supplied with two high-performance custom cables for Analyzer attachment
-
Data path uses high-speed linear redrivers to ensure good signal capture with little or no tuning
-
Supports Analyzer side-band signal capture and triggering
-
Provides two differential clock connectors
-
Interposer power is independent of host system
-
A 120/220 AC in, 12V/3A DC output converter is included
-
LEDs give quick indicators of power and status
-
Format: Design based on 4-lane PCIe CEM specification
-
Supported by VIAVI Analyzer tools for trace capture with filter, trigger and more
-
Provides consistent, repeatable capture of link training, negotiation and other data
-
Supports error injection for deep system analysis
-
Supported by Xgig tool suite including Trace Control, Expert and Serialytics
-
Supports link widths up to and including 8-lanes
-
Operates up to 16GTps, PCIe 4.0 data rates
-
Downward compatible with PCIe gen-1, gen-2 and gen-3 data rates of 2.5, 5.0 and 8.0GTps
-
A top edge 16-lane CEM slot connector accepts all endpoint DUT adapter cards
-
Bottom edge 8-lane PCB finger connector installs into host test system’s 4-, 8- or 16-lane PCIe slot
-
Supplied with four, high-quality SFF-8674 equivalent custom cables for Analyzer attachment
-
Data path uses high-speed linear redrivers to ensure good signal capture with minimal tuning
-
Supports Analyzer side-band signal triggering and capture via custom cable
-
Supports clock and trigger I/O
-
Interposer power is independent of host system.
-
Power supply, 120/220 AC in, 12V/3A DC out converter is included
-
Custom, exchangeable brackets enable secure chassis and endpoint card installations
-
LEDs give quick indication of power and operation
-
Format: Design is based on the PCIe Card Electro-Mechanical (CEM) specification
-
Supports error injection for deep system analysis
-
Supported by Xgig tool suite including Trace Control, Expert™ and Serialytics™
-
Operates up to 16GTps, PCIe gen-4 data rates
-
Downward compatible with PCIe gen-1, gen-2 and gen-3 data rates of 2.5, 5.0 and 8.0GTps
-
SFF-8674 host and target connections support PCIe links of up to 4-lanes
-
Multiple Interposers can be used with links to 16-lanes.
-
Supplied with two high-quality SFF-8674 equivalent custom cables for Analyzer plus two cables for DUT attachment
-
Data path uses high-speed linear redrivers to ensure good signal capture with minimal tuning
-
Supports Analyzer side-band signal capture and triggering in multiple formats
-
Two coax cables supplied for optional clocking sources
-
Interposer power is independent of host system.
-
A 120/220 AC in, 12V/3A DC output converter is included
-
LEDs give quick indication of power and status
-
Size: (L x W x H): 112 x 150 x 30 mm (incl. rubber stands)
-
Works together with VIAVI Xgig 4K Analyzer platforms
-
Provides consistent, repeatable capture of link training, equalization negotiation and other data traffic
-
Supports error injection for deep system analysis
-
Supported by Xgig tool suite including Trace Control, Expert™ and Serialytics™
-
Operates up to 16GTps, PCIe 4.0 data rates
-
Downward compatible with PCIe 1.0, 2.0 and 3.0 data rates of 2.5, 5.0 and 8.0GTps
-
OCulink host and target connectors support PCIe links of up to and including 4-lanes
-
Supplied with two, high-performance SFF-8674 equivalent custom cables for Analyzer attachment
-
Data path uses high-speed linear redrivers to ensure good signal capture with minimal tuning
-
Supports Analyzer side-band signal triggering and capture via custom cable
-
Provided with Slimline 4-lane to 4-lane OCulink conversion cables
-
Two cables supplied for optional clocking sources
-
Interposer power is independent of host system.
-
A 120/220 AC in, 12V/3A DC output converter is included
-
LEDs give quick indication of power and operation
-
Works together with VIAVI Xgig 4K Analyzer platforms
-
Provides consistent, repeatable capture of link training, equalization negotiation and other data
-
Up to four Interposers are stackable to support wider length widths
-
Supports Jammer error injection for deep system analysis
-
Supported by Xgig tool suite including Trace Control, Expert™ and Serialytics™
-
Operates up to and including 16GTps, PCIe 4.0 data rates
-
Downward compatible with PCIe 1.0, 2.0 and 3.0 data rates of 2.5, 5.0 and 8.0GTps
-
Supports 1 link of 4 lanes, or dual-port operation of 2 links of 2 lanes each
-
Front-end module plugs into system-under-test
-
U.2 NVMe SSD DUT (not supplied) plugs into the Back-end module
-
Adjustable tray clamps and quick-release latch allow for snug fit and hot swap testing
-
Data path uses high-speed linear redrivers to ensure good signal capture with minimal tuning
-
Supplied with high-quality, custom SFF-8764 cables for Analyzer system attachment
-
Supports side-band signal triggering and capture
-
Supplied power brick makes Interposer power independent of host system
-
LEDs give quick indicators of power and status
-
Works with VIAVI Xgig 4K4 and 4K16 PCIe 4.0 Analyzer/Jammer chassis
-
Provides consistent, repeatable capture of link training, negotiation and other data
-
Supports error injection for deep system analysis
-
Supported by Xgig tool suite including Trace Control, Expert and Serialytics
-
Operates up to 16GTps, PCIe 4.0 data rates
-
Downward compatible with PCIe data rates of 2.5, 5.0 and 8.0GTps
-
Supports 1-link of 4-lanes, or 2-links of 2- lanes
-
Adjustable tray clamps and quick-release latch allow for snug fit and quick SSD swap
-
Data path uses high-speed linear redrivers to insure good signal capture with little or no tuning
-
Supplied with high-quality, custom SFF-8764 cables for analyzer system attachment
-
Supports side-band signal capture and triggering
-
Supplied power brick makes interposer power independent of host system
-
Works together with the VIAVI Xgig 4K4 and 4K16 PCIe 4.0 Analyzer/Jammer chassis
-
Supported by VIAVI Xgig Analysis tools for trace capture with flexible filters, triggers and more
-
Provides consistent, repeatable capture of link training, negotiation and other data
-
Supports link widths up to and including 4-lanes
-
Operates up to 16GTps, PCIe 4.0 data rates
-
Downward compatible with PCIe gen-1, gen-2 and gen-3 data rates of 2.5, 5.0 and 8.0GTps
-
A top edge 16-lane CEM slot connector accepts all endpoint DUT adapter cards
-
Bottom edge 4-lane PCB finger connector installs into host test system’s 4-, 8- or 16-lane PCIe slot
-
Supplied with two high-quality SFF-8674 equivalent custom cables for Analyzer attachment
-
Data path uses high-speed linear redrivers to ensure good signal capture with minimal tuning
-
Supports Analyzer side-band signal triggering and capture via custom cable
-
Supports clock and trigger I/O
-
Interposer power is independent of host system.
-
Power Supply, 120/220 AC in, 12V/3A DC out converter is included
-
Custom, exchangeable brackets enable secure chassis and endpoint card installations
-
LEDs give quick indication of power and operation
-
Format: Design is based on the PCIe Card Electro-Mechanical (CEM) specification
-
Supports error injection for deep system analysis
-
Supported by Xgig tool suite including Trace Control, Expert™ and Serialytics™
