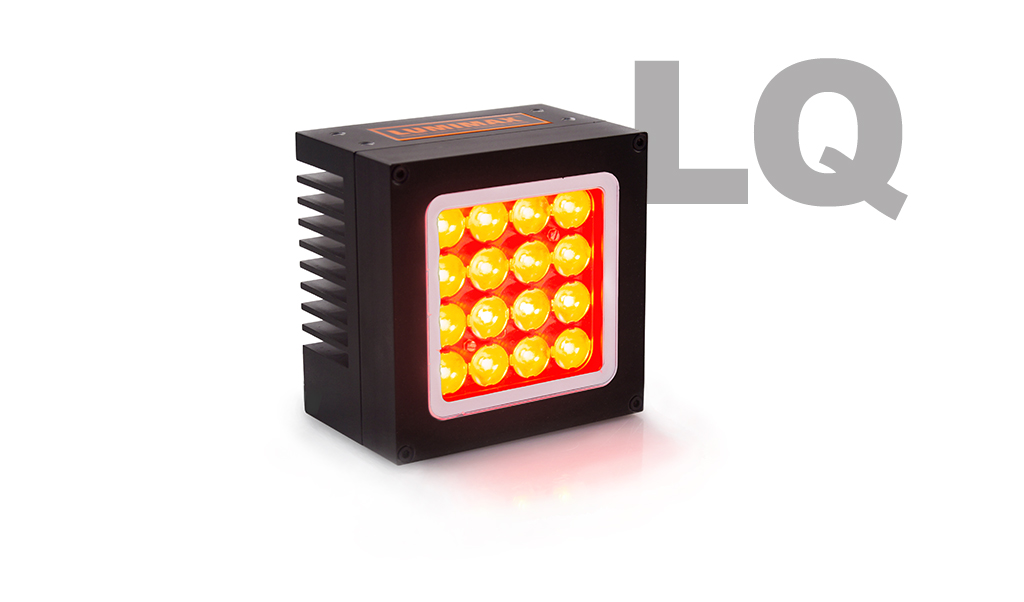

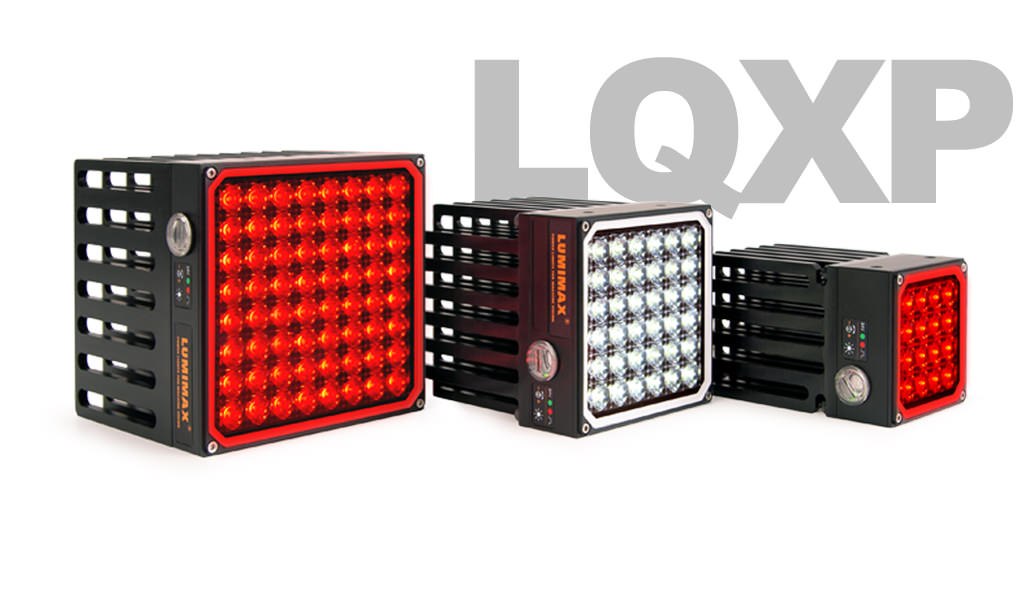

High Power LED Flood Lights are used wherever even wide object fields need to be illuminated with high light output from a greater distance.

The integrated lens exchange option of the LQ and LQHP series allows the light source to be individually adjusted to different object sizes and working distances. Calculate the optimal illumination area of the LED Area Flood Light for your application easily and simply with the help of our practical tool.

LUMIMAX® LED Ring Lights are ideal for the uniform illumination of flat, matte and reflective surfaces. A range of different sizes and performance classes of the LED ring light provide the optimum illumination for every application.

Lens exchange options, diffusers, Fresnel lenses and polarisation filters allow the optimisation of the radiation characteristic to the required inspection task – even at working distances of several meters. Calculate the optimal illumination area of the LR-series Ring Lights for your application easily and simply with the help of our practical tool.

Direct mounting on the camera or lens using optional accessories simplifies integration of the LED Ring Lights into Machine Vision systems.

With the LED Ring Lights of the BASIC series even price-sensititve applications can be reliably implemented.The focus here is on the realization of essential functions at high quality. A smart and lightweight design ease the integration in confined or moving machine vision systems.

• Capability:
  • Spectral scan, spatial scan, peak-hold, continuous scanning, spectral and spatial comparison, scripting, limit lines, and report generation.
• Spatial scan time:
  • Continuous real-time or sub-second single scan for the entire scan area is dependent on spectrum analyzer performance.
• Spectral scan time:
  • 45 seconds for L 10 cm x W 10 cm (L 4” x W 4”) PCB with a 100 MHz span and 100 kHz RBW. Scanning area, span, and RBW are user-selectable within spectrum analyzer specifications
• EMViewer Software
  • We recommend you use the EMViewer software for best results. A Yearly subscription or a once-off purchase is available.
• Supported operating systems:
  • Windows 10®
• Supported CAD overlays:
  • Standard Gerber© RS274x format and HPGL format

With their domed shape, LUMIMAX® LED dome lights generate a diffused light that falls on the test object from all directions, achieving completely shadow-free illumination.

Typical applications are the inspection of reflective or mirroring materials. With a LED dome light, even complex or curved surfaces can be illuminated homogeneously.

LED dome lights are extremely well suited for standard-compliant reading and verification of two-dimensional codes.

With their radial and flat incoming light, LUMIMAX® LED Dark Field Illuminations are the preferred option for inspecting surfaces. Their special light guide means that this LED Dark Field Illumination geometry can be used to show edges, cavities and other surface defects in high contrast.

The Dark Field Lights in the DFL series are available in several sizes for continuous and strobe mode.

Integrated controllers, powerful LEDs and standardised LUMIMAX® connections guarantee simple and stable integration of the LED Dark Field Illumination into the system environment.
