AVT - Guppy PRO F-046 Small CCD camera with Sony ICX415 - IEEE 1394b
-
Compact 0.5 MP camera
-
Robust metal housing
-
Sony ICX415 sensor
-
Optocoupled I/Os
-
Various IR cut/pass filters
-
White medical housing

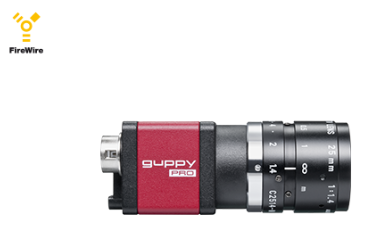

The Guppy PRO F-046B/F-046C is a small IEEE 1394b camera with the Sony ICX415 sensor. At full resolution the camera runs 62 frames per second. With a smaller area of interest (AOI), higher frame rates are possible.
Specifications
Interface
IEEE 1394b - 800 Mb/s, 1 port
Resolution
780 (H) × 580 (V)
Sensor
Sony ICX415
Sensor type
CCD Progressive
Sensor size
Type 1/2
Pixel size
8.3 µm × 8.3 µm
Lens mount (default)
C-Mount
Max. frame rate at full resolution
62 fps
ADC
14 Bit
Output
Bit depth
8-12 Bit
Monochrome pixel formats
8/12/16
RGB color pixel formats
RGB8
Raw pixel formats
8/12/16
Operating conditions/dimensions
Operating temperature
+5 °C to +45 °C
Power requirements (DC)
8 V to 36 V
Power consumption
<3.5 W (@ 12 VDC)
Mass
80 g
Body dimensions (L × W × H in mm)
44.8 × 29 × 29 (including connectors)
Regulations
CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B
Features
- Look-up table (LUT)
- Gamma correction
- Color correction
- Area of interest (AOI), separate AOI for auto features
- Binning
- Sub-sampling
- Auto gain (manual gain control: 0 to 24.4 dB)
- Auto exposure (41 µs to 67 s)
- Trigger programmable, level, single, bulk, programmable delay
- Storable user sets
Scope of delivery
- Camera and IEEE 1394b cable (other configurations on request)
Applications
This inexpensive, reliable mainstream machine vision camera addresses a wide range of imaging applications. With its ultra-compact housing, the Guppy PRO F-046B/F-046C is the perfect fit for all applications with space constraints.
- Machine vision
- Robotics (robust housing, lightweight camera)
- Quality control
- Semiconductor inspection
- Industrial inspection
- ITS/traffic monitoring
Quantum efficiency
Document
Document
Document
Technical papers, knowledge base
3D CAD files (STEP)
Please right-click the link of a 3D camera model and select save as to download the file. After downloading, unzip the STEP file. You need a 3D CAD viewer application to view and measure the STEP files. Download a STEP viewer free of charge: https://www.freecadweb.org/
