LUMIMAX - High Power LED Spot Lights
LUMIMAX® High Power LED Spot Lights are particularly compact, but at the same time extremely powerful and versatile.
Adjustable precision optics of the LED Spot Lights allow adjustment of the radiation characteristic to the required working distances and image fields, enabling a focused or very homogeneous illumination of the object to be inspected.
LED Spot Light's filter thread allows mounting of components such as polarisation filters or bandpass filters for fluorescence applications. With the C-Mount connector, either integrated or available as an accessory, lenses for focusing can be used.
Despite their compact design, the LUMIMAX® LED Spot Lights feature an integrated lighting controller for continuous or strobe mode.
Go to the product configurator for your desired lighting
|
High Power Spot Lights |
|
Light area 14 mm or 24 mm |
| Lens system for adapting the focus |
|
Fluorescence applications in UV365 nm and UV395 nm |
|

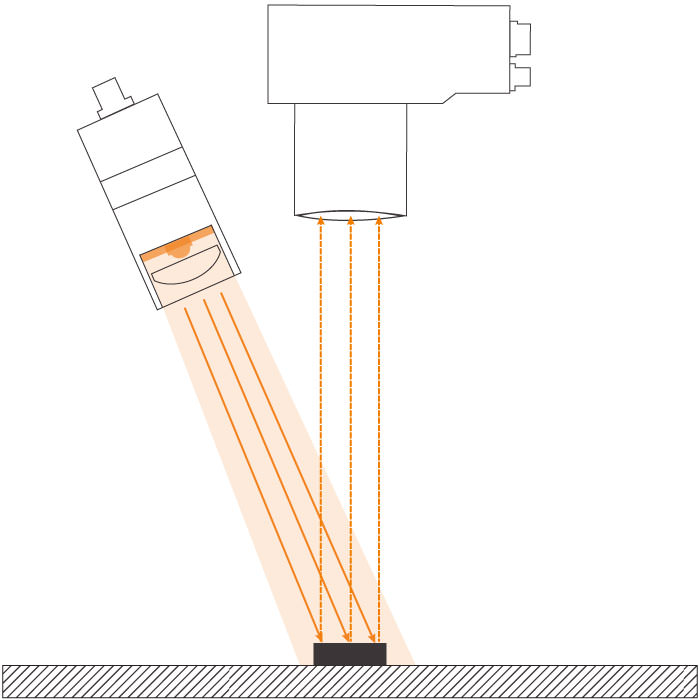

Principle - Spot Lights
|
|
Reflected light (partial bright field) |
|
Spot lighting is used to direct light onto the test object at a slight angle |
|
Versatile possibilities for use, as the illumination angle and/or the focus of the lighting can be adapted via adjustable lens barrel |
|
Area of application: assembly, type and position detection, printed material inspection, surface finish inspection, OCR/OCV |
