  • Highest resolution - 12 bits all the time
  • Bigger Display, smaller footprint, most bench space
  • More capability, increased productivity

More

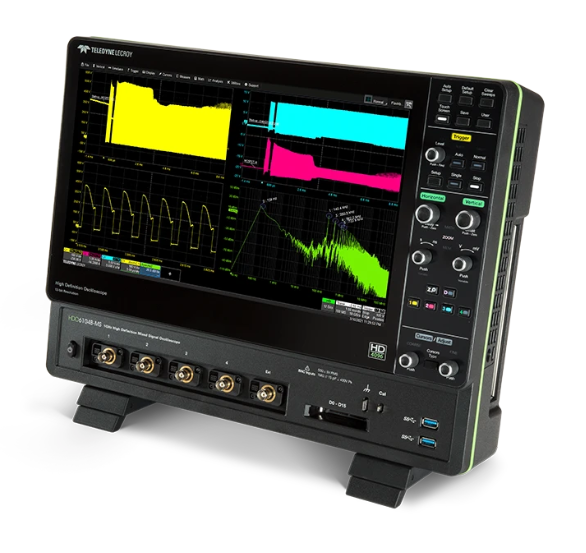

Providing 12 bits all the time, a bigger display, smaller footprint, and more capability, the HDO6000B captures every detail.

Highest Resolution - HD4096 High Definition Technology,12 Bits All the Time

Highest Resolution - HD4096 High Definition Technology,12 Bits All the Time

Teledyne LeCroy high definition 12-bit oscilloscopes use unique HD4096 technology to provide superior and uncompromised measurement performance. HD4096 technology provides the highest resolution and lowest noise at full bandwidth—12 bits all the time with no compromise.

Bigger Display, Smallest Footprint, More Bench Space

Bigger Display, Smallest Footprint, More Bench Space

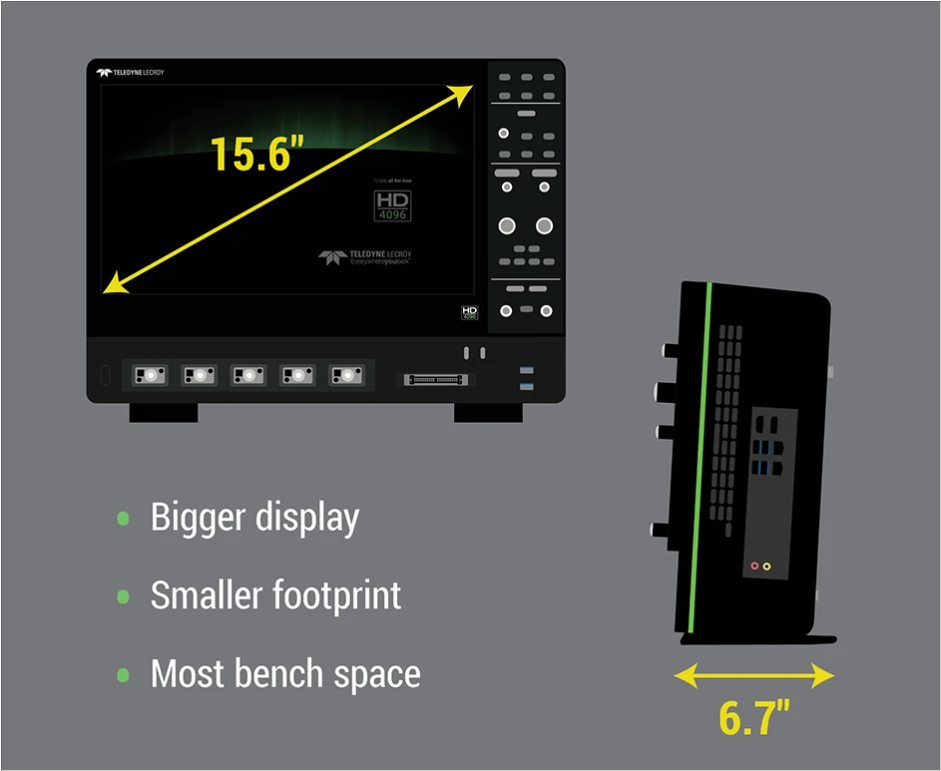

  • 15.6" display with 1920x1080 resolution
  • Sleekest instrument compared to competition. 25% less deep.
  • Occupies lesser bench space compared to competition

More Capability, Increased Productivity

More Capability, Increased Productivity

Increase productivity with specialized tools

  • MAUI Studio
  • Spectrum Analysis
  • QualiPHY Compliance Testing

More Product Information

Teledyne LeCroy - WaveRunner 8000HD 350 MHz - 2 GHz High Definition Oscilloscopes
  • Highest resolution – 12 bits all the time
  • More channels, flexibility – 8 analog and 16 digital channels
  • Longest Memory – 5 Gpt records with simple navigation – no compromise
  • View 16 channels on one display with OscilloSYNC™
  • Powerful, deep toolbox enables and simplifies complex analysis
  • MAUI with OneTouch user interface for intuitive and efficient operation

Teledyne LeCroy - WaveSurfer 4000HD High Definition Oscilloscopes 200 MHz - 1 GHz
  • Highest resolution – 12 bits all the time
  • More capability – integrates multiple instruments into one
  • Comprehensive probe support – supports over 30 probes in 9 categories
  • MAUI with OneTouch user interface for intuitive and efficient operation

Teledyne LeCroy - WavePro HD 2.5 GHz - 8 GHz High Definition Oscilloscope
  • HD4096 technology provides 12-bit resolution up to 8 GHz and 20 GS/s
  • Up to 5 Gpts of acquisition memory enables detailed viewing of long events
  • 15.6" 1900 x 1080 Full HD capacitive touchscreen
  • New ProBus2 input supports up to 8 GHz bandwidth and direct compatibility with a wide variety of existing ProBus probes - 50Ω and 1MΩ coupling modes support all input types on a single connector
  • MAUI with OneTouch user interface for intuitive and efficient operation
  • Deep toolbox enables and simplifies complex analysis
  • Intuitive navigation to quickly find important features in long waveforms

Teledyne LeCroy - LabMaster 10 Zi-A High Bandwidth Modular Oscilloscopes, 20 GHz – 100 GHz
  • Up to 100 GHz Industry leading analog bandwidth
  • Acquisition module configurations with up to:
    • 4 channels at 36 GHz
    • 2 channels at 65 GHz
    • 1 channel at 100 GHz
  • Up to 240 GS/s sample rate
  • Long Memory - Up to 1.5 Gpt/ch
  • Modular Design - build a system with up to 20 acquisition modules, for:
    • 80 channels at 36 GHz
    • 40 channels at 65 GHz
    • 20 channels at 100 GHz
  • ChannelSync™ Architecture for 130 fs matching between channels
  • Multi-Lane eye, Jitter and Noise Analysis with SDAIII-CompleteLinQ
  • Optical Modulation Analysis with Optical-LinQ
  • PAM4 Eye, Jitter and Noise Measurements with PAM4 Signal Analysis
  • Industry’s only true hardware 14.1 Gb/s serial trigger
  • Add 12.5 GS/s mixed-signal capability at any time with the HDA125 high-speed digital analyzer

Teledyne LeCroy - WaveMaster / SDA / DDA 8 Zi-B Oscilloscopes 4 GHz–30 GHz
  • Up to 30 GHz bandwidth and 80 GS/s sample rate
  • The most advanced oscilloscope user interface
  • The industry’s only true hardware 14.1 Gb/s serial trigger
  • Low Jitter Measurement Floor and exceptional timebase stability
  • Comprehensive set of serial data analysis, debug, validation and compliance tools
  • Integrated 50 Ω and 1 MΩ inputs for true connection and probing flexibility
  • Integrated standard and custom measurements and math functions for unrivaled analysis capability
  • Multi-lane serial data eye, jitter and crosstalk analysis
  • Real-time de-embedding, emulation, and equalization

Teledyne LeCroy - WaveSurfer 3000z 100 MHz - 1 GHz Oscilloscopes
  • 100 MHz, 200 MHz, 350 MHz, 500 MHz and 1 GHz bandwidths
  • Up to 4 GS/s sample rate
  • Long Memory – up to 20 Mpts
  • 10.1” capacitive touch screen display
  • 16 Digital Channel MSO option
  • MAUI - Most Advanced User Interface
    • Designed for Touch
    • Built for Simplicity
    • Made to Solve
  • Advanced Anomaly Detection
    • Fast Waveform Update
    • History Mode - Waveform Playback
    • WaveScan - Search and Find
  • Multi-Instrument Capabilities
    • Protocol Analysis - Serial Trigger and Decode
    • Waveform Generation - Built-in Function Generator
    • Digital Voltmeter and Frequency Counter
  • Future Proof
    • Upgradeable Bandwidth
    • Field Upgradable Software and Hardware Options

Teledyne LeCroy - WaveRunner 9000, 500 MHz - 4 GHz Oscilloscopes
  • 500 MHz - 4 GHz bandwidths
  • Up to 40 GS/s sample rate
  • 15.4" capacitive touch screen
  • MAUI with OneTouch
  • Powerful, Deep Toolbox
  • Exceptional Serial Data Tools
  • 16 digital channels with 1.25 GS/s
  • Huge Applied Offset Range
  • Optional Application Packages

Abaco - ICS-8580 2-Channel High-Definition or 4-Channel Standard Definition H.264 Video encoder/decoder
  • Real-time multi-channel encoding and decoding for transmission of video over IP data link
  • ITU-T H.264 AVC Codec (MPEG4 Part 10) Main Profile with configurable codec parameters
  • MPEG2 TS multiplexing with audio and metadata encapsulation
  • Data rates from 512kbps to 20Mbps <60ms Latency
  • 1 to 2 channels of HD encoded video up to 1600 X 1200@30fps
  • 1 to 4 channels of Standard Definition video
  • Input sources supported: HD/SD SDI (SMPTE259M/292M), NTSC/ PAL, HDTV (1080p/720p), CVBS, S-Video, Component
  • Support for Base Cameralink input devices
  • Stereo Audio I/O with synchronization to video
  • Metadata Ingest through Ethernet and PCIe
  • Output video formats supported: HD/SD SDI, SDTV, HDTV, CVBS, S-Video, Component
  • PCIe Gen1 x4 Data link for Raw/ Compressed Video Transport, Metadata and H/W configuration
  • Configuration control through Ethernet/PCIe Webserver or programmable API
  • Support for direct record/playback from NAS data storage
  • Video compression SDK/API for fast integration into enterprise applications
  • Multiple OS support for API and device drivers

Teledyne LeCroy - PPE5KV 100:1 400 MHz 50M Ohm High-Voltage Probe

The PPE series of probes are suitable for a wide range of applications where high-voltage measurements must be made safely and accurately. There are five fixed-attenuation probes covering a range from 2 kV to 20 kV, and one switchable probe providing ÷10/÷100 attenuation for voltage inputs up to 1.2 kV.

New technology which utilizes hybrid circuitry (and switch reading for probes with switchable gain/attenuation) minimizes ringing and overshoot to provide a precise response.

All fixed-attenuation, standard probes automatically re-scale any Teledyne LeCroy 9300C or LC series oscilloscope for the appropriate attenuation factor of the probe.
