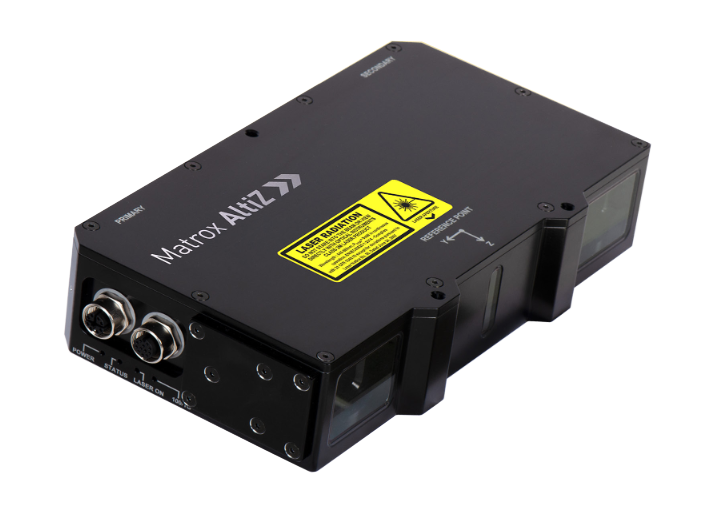

Matrox Imaging - AltiZ High-fidelity 3D profile sensors

Matrox Imaging - AltiZ High-fidelity 3D profile sensors
  • Leverage dual-camera single-laser design to deliver exceptionally high 3D reproduction fidelity
  • Scan scenes quickly with profiling rates of up to 11,000 per second
  • Gain from unique embedded algorithms to generate consistent profiles, depth maps, or point clouds
  • Benefit from truly standard GigE Vision® interface to work directly with Matrox Imaging and third-party vision software
  • Simplify cabling with Power-over-Ethernet (PoE) support
  • Deploy confidently in tough industrial settings thanks to an IP67-rated solid-aluminum housing and M12 connectors
  • Benefit from several fastening points to facilitate fixing one or more sensors to gantries and robots
  • Streamline sensor setup and verification via the Matrox Capture Works utility for Windows® and Linux®

More

Matrox® AltiZ is a series of high-fidelity 3D profile sensors. Each sensor features a dual-camera single-laser design that greatly lessens the scanning gaps often encountered at critical surface junctures because of optical occlusions. Unique algorithms running inside the sensor automatically generate various types of reliable 3D data—individual profiles, depth maps, or point clouds—obtained by smartly combining or selecting the pixel data from the two integrated image sensors, which is automatically sampled for a constant horizontal resolution.

More Product Information

Matrox Imaging - Supersight Imaging Computer, High-density computing platform for demanding industrial imaging
  • Scale system performance from one to four computing clusters for demanding image acquisition and processing needs
  • Support any camera interface type with the addition of appropriate Matrox Imaging frame grabber board(s)
  • Exchange data between compute clusters internally at high speed through a PCIe Gen3 switched fabric backplane
  • Maximize density in a 4U chassis with up to 10 full-length and one half-length, full-height PCIe Gen3 slots
  • Tailor host data transfer bandwidth needs through PCIe x16, x8, and x4 interfaces
  • Minimize the need for revalidation by utilizing a lifecycle-managed platform with consistent long-term availability
  • Simplify system integration by using an integrated platform from a single vendor
  • Solve applications rather than develop underlying tools by leveraging standard Microsoft® development tools and MIL X software

Matrox Imaging - 4Sight EV6 Fanless Industrial Imaging Computer
  • Reduce service stoppages with a fanless design
  • Inspect multiple sites through the support for four GigE Vision and four USB3 Vision cameras
  • Simplify cabling for GigE Vision installations using Power-over-Ethernet (PoE)-enabled ports
  • Tackle typical vision workloads with a mobile-class embedded seventh-generation Intel Core processor
  • Connect separately to the factory floor and enterprise networks via two more Gigabit Ethernet ports
  • Synchronize with other equipment using the integrated real-time digital I/Os with rotary encoder support and RS-232/RS-485 ports
  • Streamline application development using the Matrox Design Assistant X flowchart-based IDE or the MIL X SDK
  • Tackle machine vision applications with utmost confidence using field-proven tools for analyzing, locating, classifying, measuring, reading, and verifying
  • Leverage machine learning including deep learning to categorize image content

Matrox Imaging - Rapixo CL Pro Feature-packed high-performance Camera Link frame grabbers with FPGA-based image processing offload
  • Support the most high-performance Camera Link cameras with available support for Full and 80-bit mode at up to 85 MHz
  • Perform deterministic image acquisition by way of the jitter-free Camera Link 2.1 interface
  • Offload host computer of custom image processing using a field-programmable gate array (FPGA) device
  • Eliminate missed frames through a PCIe® 2.0 x8 host interface and ample onboard buffering
  • Optimize multi-camera applications via support for up to four Base or two Full/80-bit Camera Link cameras per board
  • Minimize space requirements and maximize PC compatibility through a half-length design with mini Camera Link connectivity for true single-slot operation
  • Improve and simplify system connectivity with Power-over-Camera-Link (PoCL) support at extended cable lengths

Matrox Imaging - Radient eV-CL Feature-packed Feature-packed high-performance Camera Link frame grabber series
  • Support the most high-performance Camera Link cameras with available support for Full and 80-bit mode at up to 85 MHz
  • Perform deterministic image acquisition by way of the jitter-free Camera Link 2.1 interface
  • Maximize system compatibility with the choice of PCIe® 2.1 x4 or x8 connectivity
  • Eliminate missed frames with ample onboard buffering and PCIe bandwidth
  • Optimize multi-camera applications via support for up to four Base or two Full/80-bit Camera Link cameras per board
  • Minimize space requirements and maximize PC compatibility through a half-length design with mini Camera Link connectivity for true single-slot operation
  • Improve and simplify system connectivity with Power-over-Camera-Link (PoCL) support at extended cable lengths

Matrox Imaging - Iris GTX Smart Cameras
  • Boost performance by up to 3x over its precursor thanks to an Intel x6000 series embedded processor
  • Capture high-resolution images at high speed through a choice of CMOS sensors from two to 16 Megapixels
  • Deploy in dirty, humid, or harsh industrial environments by way of a compact IP67-rated design
  • Communicate actions and results to other automation and enterprise equipment via real-time digital I/Os, and Ethernet (TCP/IP, CC-Link IE Field Basic, EtherNet/IP™2, Modbus®, PROFINET®, and native robot interfaces)
  • Handle Human-Machine Interface (HMI) function by way of VGA and USB connectivity
  • Simplify vision setup and upkeep via integrated lens focusing and illumination intensity control
  • Synchronize to the manufacturing line through the support for incremental rotary encoders
  • Solve machine vision applications efficiently with Matrox Design Assistant X software by constructing flowcharts instead of writing program code
  • Maintain control and independence through the ability to code custom flowchart steps
  • Tackle machine vision applications with utmost confidence using field-proven tools for analyzing, locating, classifying, measuring, reading, and verifying
  • Leverage deep learning for visual inspection through image classification and segmentation tools

Matrox Imaging - Library X, Development Kit Software
  • Solve applications rather than develop underlying tools by leveraging a toolkit with a more than 25-year history of reliable performance
  • Tackle applications with utmost confidence using field-proven tools for analyzing, classifying, locating, measuring, reading, and verifying
  • Base analysis on monochrome and color 2D images as well as 3D profiles, depth maps, and point clouds
  • Harness the full power of today’s hardware through optimizations exploiting SIMD, multi-core CPU, and multi-CPU technologies
  • Support platforms ranging from smart cameras to high-performance computing (HPC) clusters via a single consistent and intuitive application programming interface (API)
  • Obtain live data in different ways, with support for analog, Camera Link®, CoaXPress®, DisplayPort™, GenTL, GigE Vision®, HDMI™, SDI, and USB3 Vision®2 interfaces
  • Maintain flexibility and choice by way of support 64-bit Windows® and Linux® along with Intel® and Arm® processor architectures
  • Leverage available programming know-how with support for C, C++, C#, CPython, and Visual Basic® languages
  • Experiment, prototype, and generate program code using MIL CoPilot interactive environment
  • Increase productivity and reduce development costs with Matrox Vision Academy online and on-premises training.

Matrox Imaging - GevIQ Series Frame Grabbers
  • Reliably and efficiently acquire at up to 25 Gigabit/s per port through onboard packet processing
  • Maintain maximum flexibility with support for generic GigE Vision cameras
  • Readily and cost-effectively support multi-camera setups through two ports, together capable of handling up to 32 cameras
  • Cater to a range of cabling needs with support for copper and fiber-optic Ethernet cabling
  • Directly license Matrox Imaging software with integrated license fingerprint and storage
  • Monitor and troubleshoot acquisition performance in detail using Matrox Gecho event-logging tool

Matrox Imaging - Indio Industrial I/O and communication card
  • Facilitate computer integration with a PCIe® x1 interface
  • Benefit from real-time synchronization with 16 discrete digital I/Os
  • Get straightforward access to I/Os via standard D-Sub connector
  • Support factory-floor and lab use with 24 V and TTL-compatible signaling
  • Protect against unintended use with optical isolation and resettable fuses
  • Track moving production lines with support for two rotary incremental encoders
  • Use status indicator LED for each I/O to assist with integration troubleshooting
  • Leverage Gigabit Ethernet port for industrial communication or video capture using GigE Vision

Matrox Imaging - 4Sight XV6 Expandable entry-level vision controller
  • Tackle demanding imaging applications using an eighth-generation Intel Core processor
  • Capture directly from GigE Vision® and USB3 Vision® cameras
  • Broaden support for Camera Link®, CoaXPress®, DisplayPort, HDMI, and SDI video interfaces using Matrox Imaging frame grabbers
  • Customize I/O capabilities through four PCIe slots accepting full-height, half-length cards
  • Install in space-limited industrial environments given its small footprint and rugged design
  • Streamline application development using the Matrox Design Assistant X flowchart-based IDE or the MIL X SDK
  • Tackle machine vision applications with utmost confidence using field-proven tools for analyzing, locating, classifying, measuring, reading, and verifying
  • Leverage machine learning including deep learning to categorize image content
  • Ready for deep learning training with suitably equipped and configured model

Matrox Imaging

Matrox® Imaging is an industry-leading developer and trusted supplier to top OEMs and integrators, providing innovative yet cost-effective hardware and software products used in machine vision applications. The components consist of 3D sensors, smart cameras, vision controllers, I/O cards, and frame grabbers, all designed to provide optimum price-performance within a common software environment.

Our software, systems, components, and services are tailored for industries including automotive manufacturing, packaging, food and beverage production, semiconductor manufacturing, medical imaging, electronics and flat panel display manufacturing, transportation, pharmaceutical production, medical device manufacturing, surveillance, and logistics. Customers stay with Matrox Imaging over multiple product generations because of our commitment to developing cutting-edge technology, providing comprehensive technical consulting and integration services, and offering only the highest manufacturing standards.

Founded in 1976, Matrox is a privately held company based in Montreal, Canada. A global player in the imaging market, Matrox Imaging has branches in the United Kingdom, Ireland, Hong Kong, Germany, and the United States, along with sales representatives in more than 25 countries worldwide. Our proven track-record assures customers that we will meet their needs for performance, value, and service—now and in the future.
